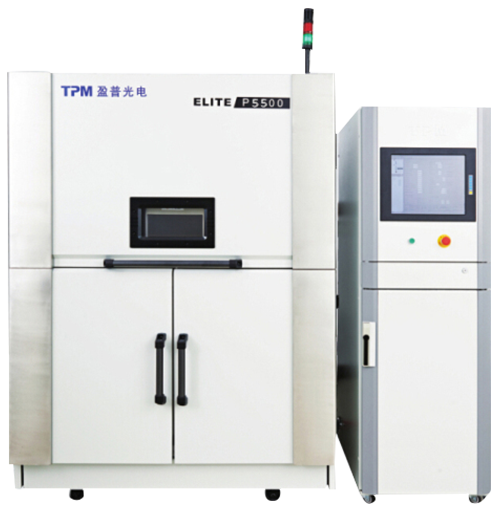

S550 3D Printer

      S550 adopts SLS (selective laser sintering molding) technology, by preheating the powder material to a temperature slightly below its melting point, and selectively sintering according to the layered cross-sectional information, sintering layer by layer, and superimposing the product.

      The processing materials of SLS technology are all kinds of nylon or polystyrene materials. The products produced by this technology have the characteristics of good comprehensive mechanical properties and can be directly used for functional use, which is very suitable for low cost, small batch production or single product with complex design
      This machine is mainly used in the manufacture of prototype and functional parts in medical, construction, automobile, industrial design and other industries.


Main technical parameters


Scope of molding:530 mm x 530 mm x 580 mm (L x W x H)

      Layer thickness:0.12 / 0.15 / 0.18 mm
      Molding precision:100 mm±0.2
      Laser power:100W
      Spot diameter:0.4mm
      Scanning speed:21000mm/s
      3D digital format:stl

      Materials:PA based powder
