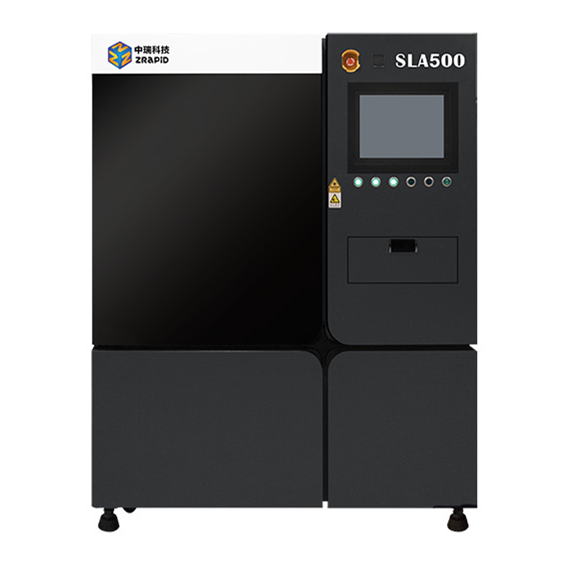

ZRapid SLA500 Photocurable Printer

      SLA500 uses SLA (stereoscopic photocuring molding) technology to form a 3D entity by focusing a laser at a specific wavelength and intensity on the surface of a photosensitive resin material, allowing it to be sequentially solidified and cured layer by layer.

      SLA technology has the characteristics of good surface quality of formed parts, and is suitable for post-treatment operations such as sandblasting, polishing, spraying and dyeing after curing.
      This machine is mainly used in the manufacture of prototype parts in medical, automotive, industrial design and other industries, and the production of molds for invisible dental braces.



Main technical parameters

      Molding range:500×400×300 mm(L×W×H)
      Layer thickness:0.05-0.2mm
      Molding precision: ±0.1mm(L≤100mm or ±0.1%×L(L>100mm)  Minimum wall-thickness 0.5mm
      Laser power:400mW
      Spot diameter:0.18mm
      Scanning speed:2000-1000mm /s
      3D data format:stl
      Materials:photopolymer
